AccuVent^® Attic Ventilation System

Brentwood’s AccuVent baffles for roof ventilation are designed to save energy for cleaner, greener living spaces. The dual function design creates ventilation channels under the roof sheathing for healthy air circulation while integral baffles prevent wind-washing. AccuVent offers a quick and inexpensive solution for architects, builders, and renovators to ensure proper insulation performance for better energy efficiency and indoor air quality.

AccuVent baffles are adaptable for any application, roof pitch, or truss size and install quickly and easily with just a few staples. They are manufactured from 100% recycled, flame-retardant PVC – a material that is compatible with all insulation types, including spray foam.

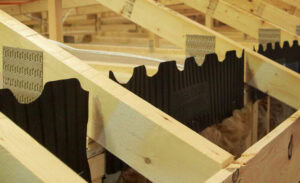

An image showing the installation of accuvent in an attic

Flexible Solution

Used for new construction & retrofits

Accommodates glass, cellulose, & spray foam insulation

Available in High Energy & Cathedral Ceiling configurations

Conforms to ENERGY STAR®, LEED®, & EPA Indoor airPLUS best practices

Navigate Within Building & Construction

Features

Efficient Airflow

Allowing air to flow in and out of the attic space protects roof shingles and prevents moisture buildup and mold growth, improving overall energy efficiency of the home.

a graphic showing a close up of the insulation coverage of a home using accuvent

Full Insulation Coverage

AccuVent allows insulation to be packed out over the top plate and keeps it in place, preventing the insulation from drifting into the soffit openings.

A person in a red shirt installs Accuvent between wooden beams in the ceiling of an unfinished attic, ensuring proper ventilation. The walls have exposed plywood, and the person uses tools to secure the panels in place.

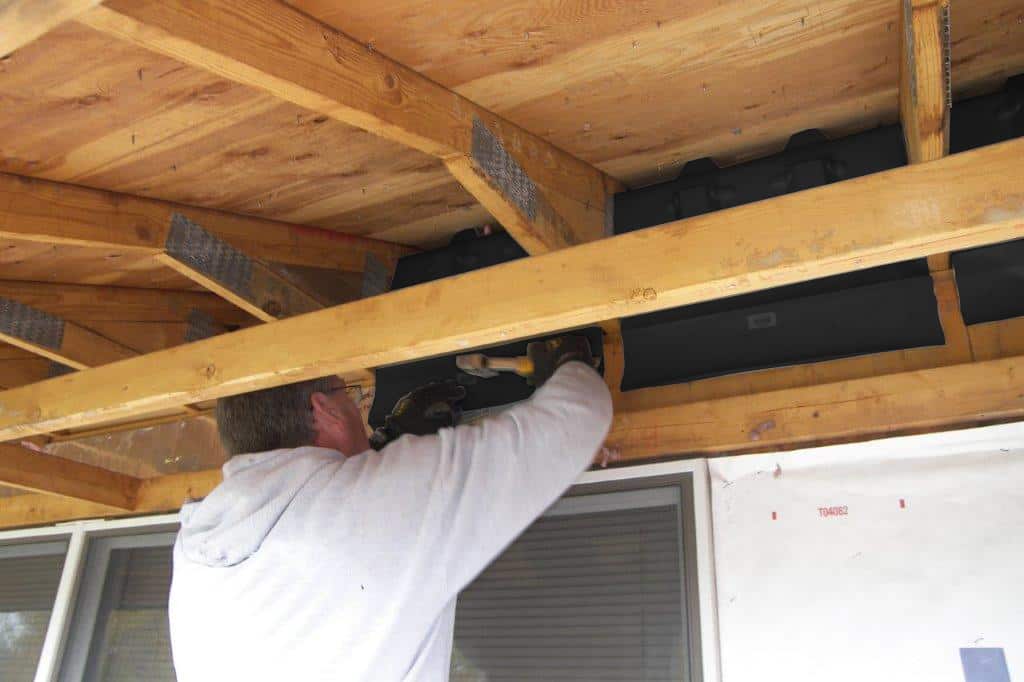

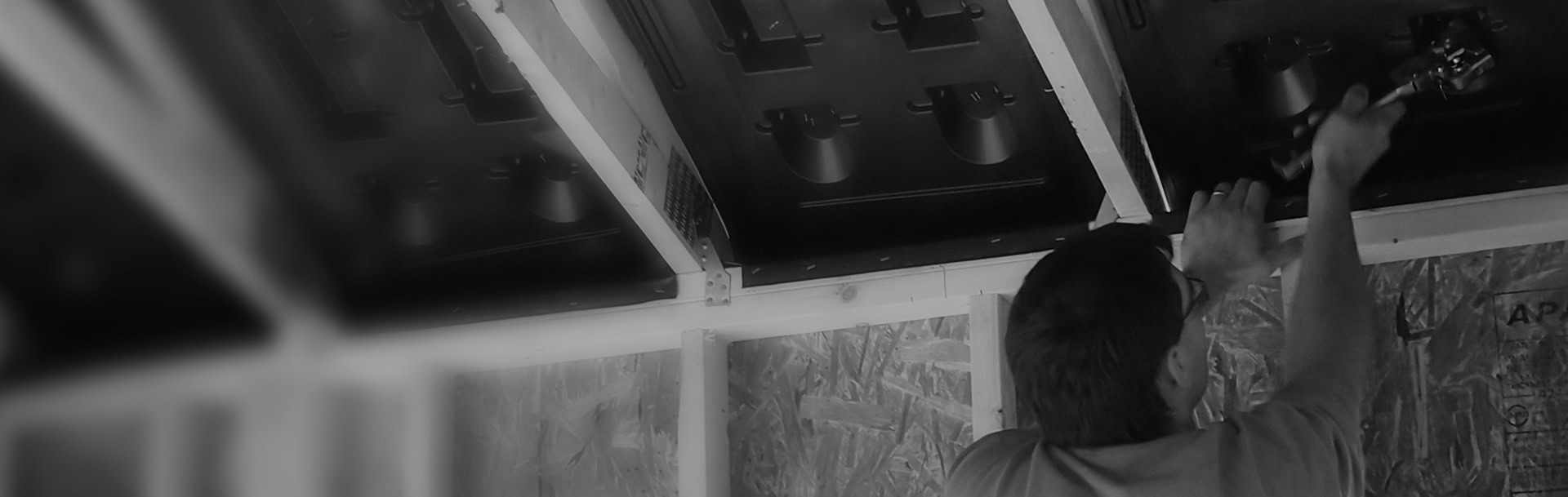

Quick & Easy Installation

Only one AccuVent unit is required per rafter of truss spacing. It is pre-perforated for easy adjustment and can be stapled in place with just 6-8 staples.

a graphic demonstrating how using accuvent attic ventilation system prevents ice damming

Ice Damming Prevention

By maintaining cool, steady attic temperatures, AccuVent works to prevent costly ice dams, which occur when ice and water are able to back up under roof shingles and seep into the attic.

Specifications

Product	Part Number	Dimensions Depth X Width X Length (inches )	Airflow (sq/in)

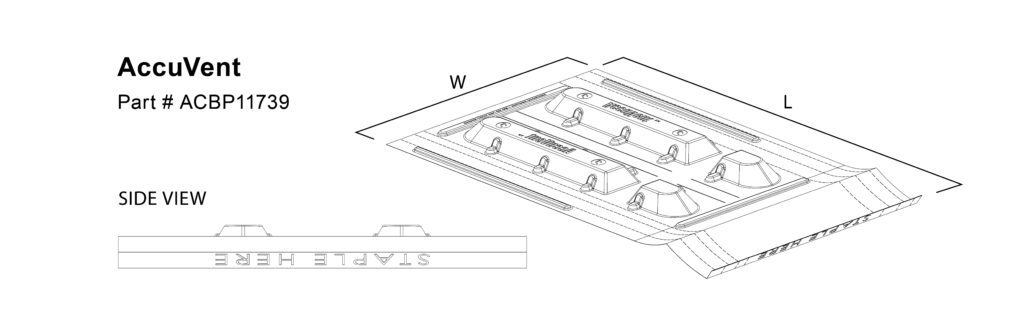

Original AccuVent	ACBP11739	1.5 x 22.5 x 41 (24 OC)	25.7

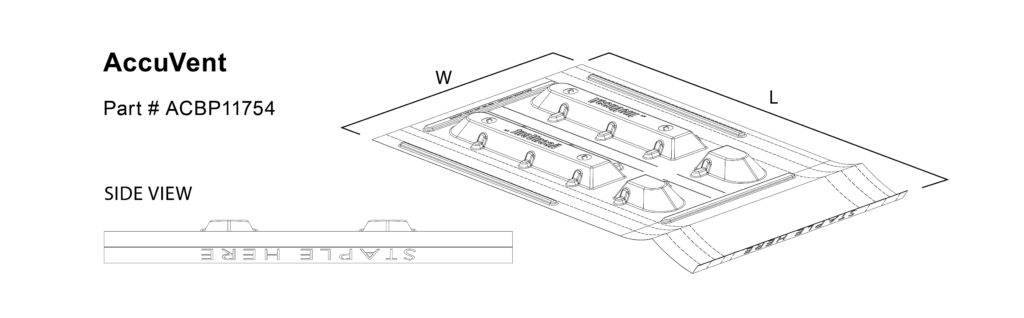

Original AccuVent	ACBP11754	1.5 x 14.5 x 41 (16 OC)	15.5

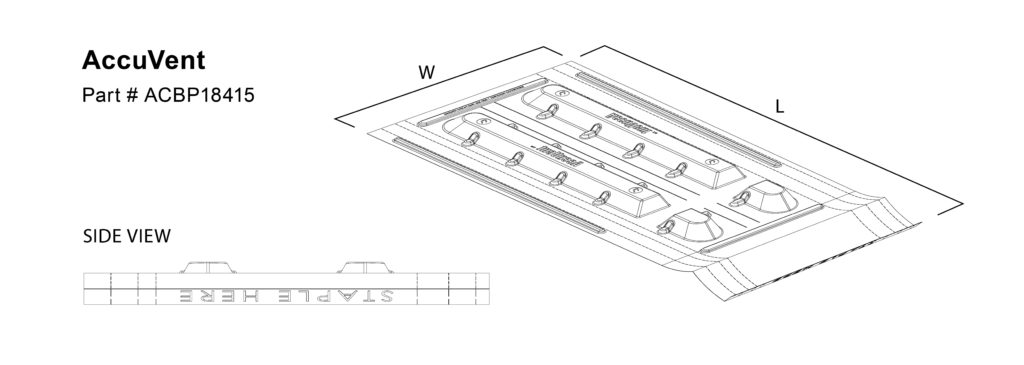

High Energy AccuVent	ACBP18415	1.5 x 22.5 x 50 (24 OC)	25.7

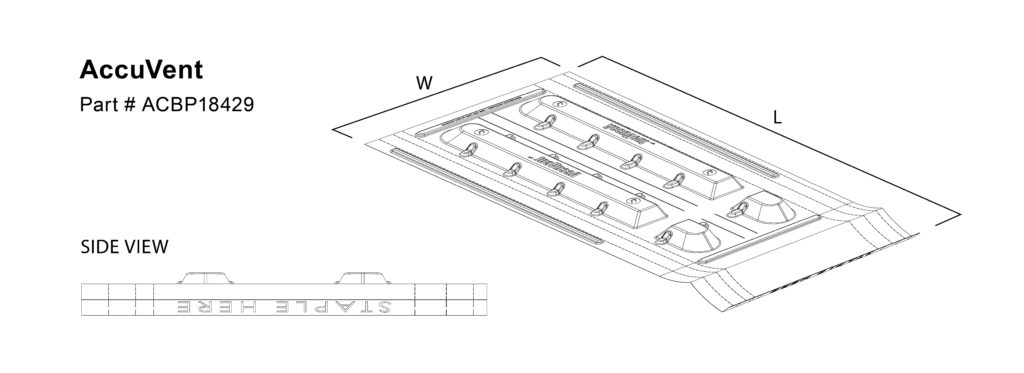

High Energy AccuVent	ACBP18429	1.5 x 14.5 x 50 (16 OC)	15.5

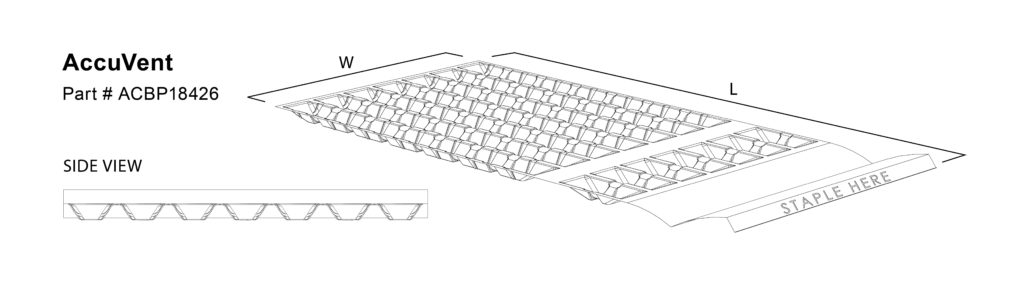

AccuVent Cathedral Ceiling	ACBP18426	Starter Strip 1 x 14.5 x 48 (16 OC)	13.1

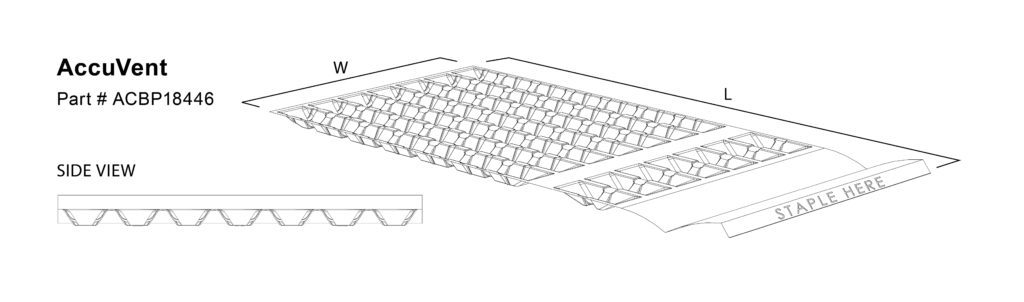

AccuVent Cathedral Ceiling	ACBP18446	Starter Strip 1 x 22.5 x 48 (24 OC)	20.3

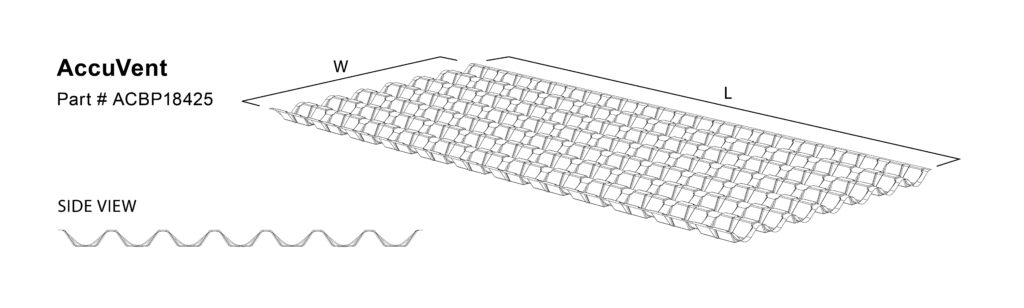

AccuVent Cathedral Ceiling	ACBP18425	Extension 1 x 15 x 48 (16 OC)	13.1
AccuVent Cathedral Ceiling	ACBP18445	Extension 1 x 22.5 x 48 (24 OC)	20.3

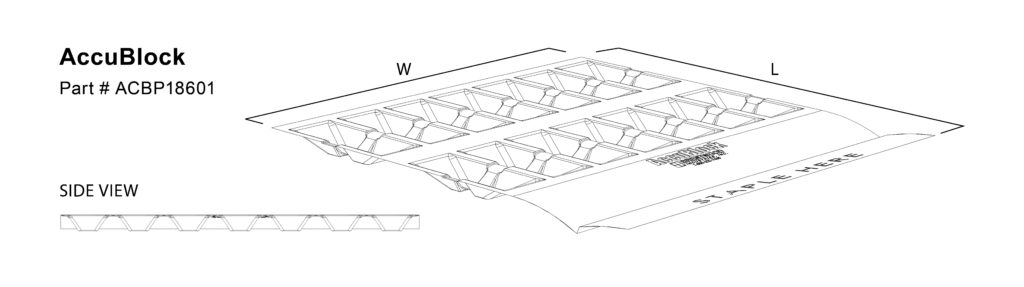

AccuBlock	ACBP18601	Starter Strip 1 x 22.5 x 24.5 (24 OC)	N/A

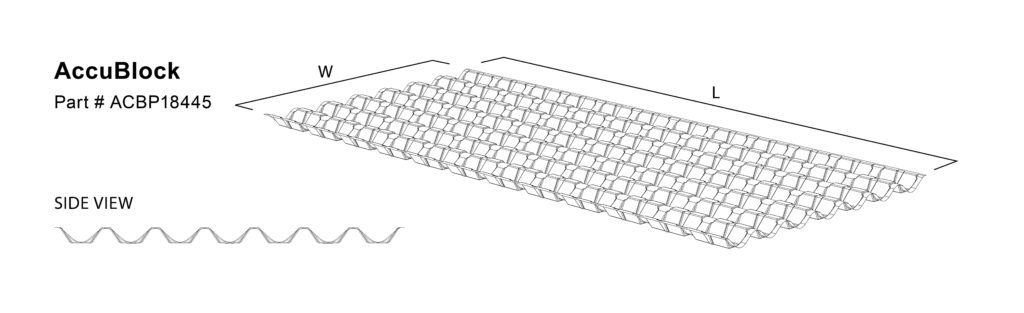

AccuBlock	ACBP18445	Extension 1 x 22.5 x 48 (24 OC)	N/A

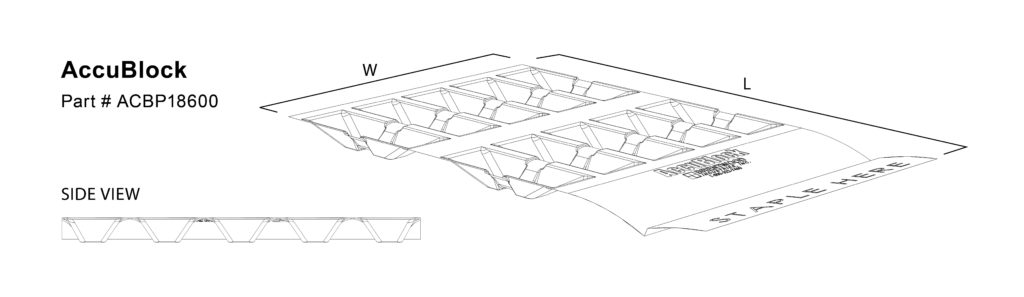

AccuBlock	ACBP18600	Starter Strip 1 x 14.5 x 24.5 (16 OC)	N/A

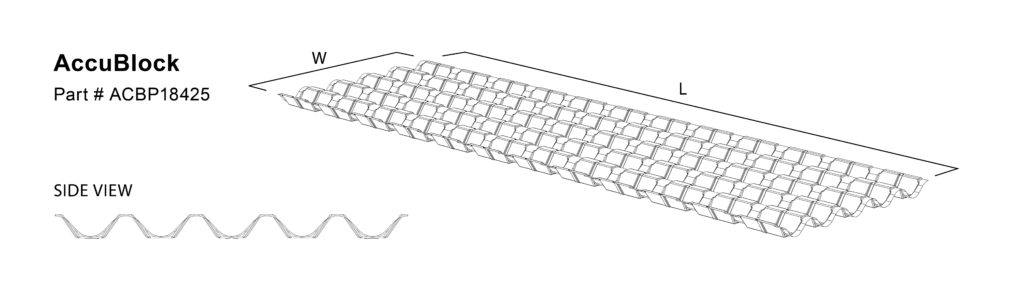

AccuBlock	ACBP18425	Extension 1 x 15 x 48 (16 OC)	N/A
