Blade Drift Eliminators
Brentwood's blade drift eliminators allow for longer span capabilities and rugged durability due to their heavy-gauge blades. They are designed for effective droplet capture and provide a cost-effective drift solution. The heavy-gauge blades are held together with end caps to form a module that is lightweight yet strong enough to span up to 10 feet, saving material and labor costs.
Benefits
Available in material meeting Cooling Technology Institute (CTI) Standard 136
Designed for counterflow & crossflow applications
Easy to assemble on site
Navigate Within Drift Eliminators
Features
Nesting Design
Drift eliminator modules nest with adjoining modules, eliminating gaps between packs and providing seamless drift removal.
Span Capability

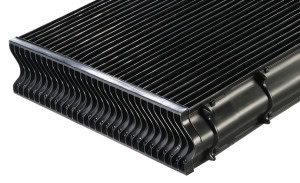

The strong blade design of the DE080 drift eliminator allows for a span capability of 6 feet between supports, saving material and labor costs in addition to reducing air blockage.
Drift Eliminator Specifications
English
Metric
| Products | Blade Spacing inches | Depth inches | Width inches | Length Ft | Blade Thickness mils | Dry Weight lbs/ft2 | Maximum Span Ft |
|---|---|---|---|---|---|---|---|
| DE080 | 0.80 | 5.75 | 24 | 1 to 12 in 12-in increments | 25 | 1.4 | 6 |

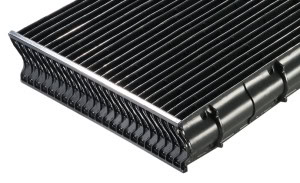

| DE097 | 0.97 | 4.75 | 23.25 | 1.5 to 12 in 18-in increments | 25 | 0.9 | 6 |

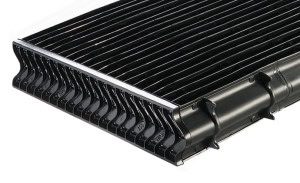

| DE120 | 1.20 | 5.75 | 24 | 1 to 12 in 12-in increments | 25 | 0.9 | 6 |

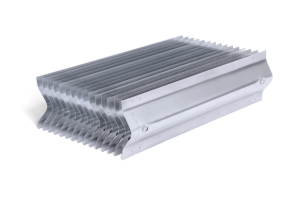

| DE080SS DE080HDG | 0.80 | 5.75 | 12.8 | 2-8 in 1-in increments | 18 | 7.3 | 8 |
| DE100SS DE100HDG | 1.00 | 5.75 | 13 | 2-8 in 1-in increments | 18 | 5.9 | 8 |
| DE120SS DE120HDG | 1.20 | 5.75 | 13.2 | 2-8 in 1-in increments | 18 | 5.2 | 8 |

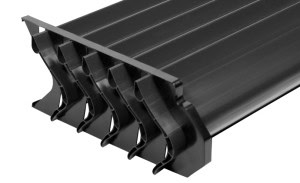

| Spectra C | 2.50 | 7 | 15 | 3-12 | Variable profile, double-walled, hollow core | 2.54 | 10 |
| Spectra A | 2.75 | 7 | 16.5 | 3-12 | Variable profile, double-walled, hollow core | 2.31 | 10 |

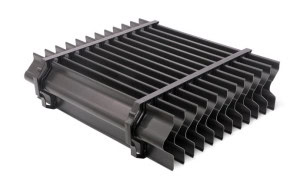

| TAP 155 | 1.50 | 6.10 | 18.03 | 11.81-236.22 | 80 | 2.06 | 78.74 |

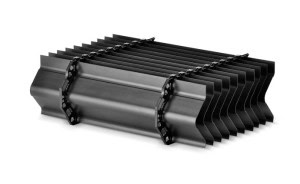

| TAP 160 | 1.30 | 6.30 | 13.39 | 11.81-236.22 | 80 | 2.59 | 78.74 |
| Products | Blade Spacing mm | Depth mm | Width mm | Length mm | Blade Thickness mm | Dry Weight kg/m2 | Maximum Span m |
|---|---|---|---|---|---|---|---|
| DE080 | 20 | 146 | 610 | 305 to 3658 in 305mm increments | 0.64 | 6.8 | 1.8 |
| DE097 | 24.6 | 121 | 590 | 457 to 3658 in 457mm increments | 0.64 | 4.4 | 1.8 |
| DE120 | 30.5 | 146 | 610 | 305 to 3658 in 305mm increments | 0.64 | 4.4 | 6 |
| DE080SS DE080HDG | 20 | 146 | 325 | 610-2,438 in 25mm increments | 0.46 | 35.6 | 2.4 |
| DE100SS DE100HDG | 25 | 146 | 330 | 610-2,438 in 25mm increments | 0.46 | 28.8 | 2.4 |
| DE120SS DE120HDG | 31 | 146 | 335 | 610-2,438 in 25mm increments | 0.46 | 25.4 | 2.4 |
| Spectra C | 63.5 | 178 | 381 | 914.4-3657.6 | Variable profile, double-walled, hollow core | 12.4 | 3.05 |
| Spectra A | 69.85 | 178 | 419 | 914.4-3657.6 | Variable profile, double-walled, hollow core | 11.3 | 3.05 |
| TAP 155 | 38 | 155 | 458 | 300-6000 | 2 | 10.08 | 2 (minimum 4 spacers) |
| TAP 160 | 33 | 160 | 340 | 300-6000 | 2 | 12.64 | 2 (minimum 4 spacers) |
