Cellular Drift Eliminators

Brentwood’s AccuPac® Cellular Drift Eliminators are constructed of an alternating series of corrugated and wave PVC sheets, assembled to form closed cells. The closed cell structure yields the greatest surface area for droplet capture in a given volume. Brentwood’s latest generation of cellular drift eliminators are specifically engineered for to maximize drift removal efficiency and minimize pressure drop.

Brentwood has conducted extensive R&D and testing of all drift eliminator products over the years, collecting results from thousands of high-performing installations. Whether your needs are for counterflow or crossflow tower applications, Brentwood knows just how important the design and material of construction can be with respect to a drift eliminator's efficiency.

a close up of two cellular drift eliminators next to each other
Benefits
Available in material meeting Cooling Technology Institute (CTI) Standard 136
Available with AccuShield technology
Select products available with Mechanical Assembly technology
Navigate Within Drift Eliminators

Cellular Drift Eliminators Products

Cooling Tower Counterflow

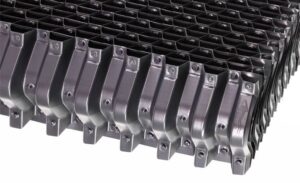

CFUltra

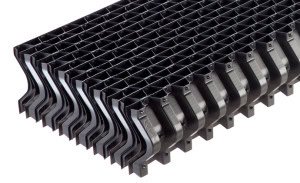

an image showcasing the CF80MAx counterflow drift eliminator
CF80MAx

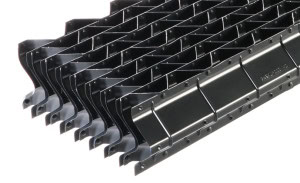

an image showcasing the CF150MAx counterflow drift eliminator
CF150MAx

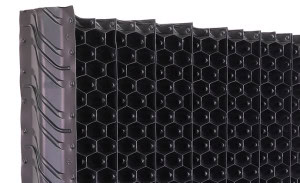

an image showcasing the XF80MAx crossflow cellular drift eliminator
XF80MAx

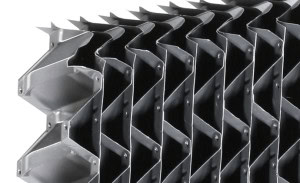

an image showcasing the XF150Max crossflow cellular drift eliminator
XF150MAx

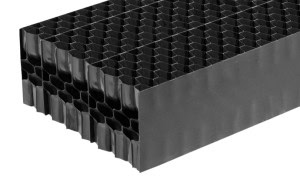

an image showcasing the D15Perf drift eliminator
D15

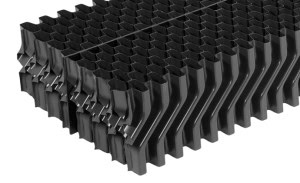

a close up of the D15NEST drift eliminator
D15NEST

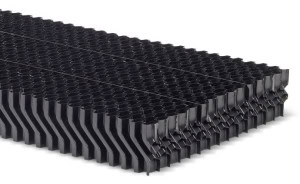

a close up of the TEC-130 from Brentwood Industries
TEP/C 130

Specifications (CF)

English Metric
ProductCell Size
inches		Depth
inches		Width
inches		Standard Lengths FtNominal Thickness (after Forming) S: Standard - Hd: Heavy Duty
mils		Dry Weight
lbs/ft2		Maximum Span Ft
CFUltra
0.86
5.25
12, 18
2, 3, 4, 5, 6, 8, 10, 12
S: 13
HD: 20
S: 1.6
HD: 2.2
S: 4
HD: 6
CF80MAx
0.86
5.25
12, 18
2, 3, 4, 5, 6, 8, 10, 12
S: 13
M: 15
HD: 20
S: 1.6
M: 1.8
HD: 2.2
S: 4
M: 6
HD: 6
CF150MAx
1.50
5.25
12, 18
2, 3, 4, 5, 6, 8, 10, 12
S: 15
HD: 20
S: 1.0
HD: 1.4
S: 4
HD: 5
ProductCell Size
mm		Depth
mm		Width
mm		Standard Lengths
m		Nominal Thickness (after Forming) S: Standard - Hd: Heavy Duty
mm		Dry Weight
kg/m2		Maximum Span
m
CFUltra
21.8
133
305, 457
610, 914, 1219, 1524, 1829, 2438, 3048, 3658
S: 0.33
HD: 0.51
S: 7.8
HD: 10.7
S: 1.2
HD: 1.8
CF80MAx
21.8
133
305, 457
610, 914, 1219, 1524, 1829, 2438, 3048, 3658
S: 0.33
M: 0.38
HD: 0.51
S: 7.8
M: 8.8
HD: 10.7
S: 1.2
M: 1.8
HD: 1.8
CF150MAx
38.1
133
305, 457
610, 914, 1219, 1524, 1829, 2438, 3048, 3658
S: 0.33
HD: 0.51
S: 4.9
HD: 6.8
S: 1.2
HD: 1.5

Specifications (XF)

English Metric
ProductBlade Spacing
inches		Depth
inches		Width
inches		Length FtBlade Thickness (after Forming)
mils		Dry Weight
lbs/ft2		Max. Height At 10° From Vertical Ft
XF80MAx
0.86
5.25
24
2 ,3, 4, 5, 6, 8, 10, 12
Standard: 13
Standard: 1.1
12
XF150MAx
1.50
5.25
12, 18
2 ,3, 4, 5, 6, 8, 10, 12
Standard: 15, Heavy Duty: 20
Standard: 1.0, Heavy Duty: 1.4
12
ProductBlade Spacing
mm		Depth
mm		Width
mm		Length
kg		Blade Thickness (after Forming)
mm		Dry Weight
kg/m2		Max. Height At 10° From Vertical
m
XF80MAx
21.8
133
610
610, 914, 1219, 1524, 1829, 2438, 3048, 3658
Standard: 0.38
Standard: 5.4
3.66
XF150MAx
38.1
133
305, 457
610, 914, 1219, 1524, 1829, 2438, 3048, 3658
Standard: 0.38, Heavy Duty: 0.51
Standard: 4.9, Heavy Duty: 6.8
3.66

Specifications (D15)

English Metric
Product Model #Min. Pack Size D/W/L
inches		Max. Pack Size D/W/L
inches		Stock Pack Size D/W/L
inches		No. 30 Mil Flat Stiffener Sheets 12-in-wide Pack, 24-in-wide PackGauge
mils		Weight Lb/ft2Maximum Span
D15 F6
D: 5.25
W: 6
L: 12
D: 5.25
W: 24
L: 120
D: 5.25
W: 12
L: 72, 96
4, 7
15

1.7
36
D15 F8
D: 5.25
W: 6
L: 12
D: 5.25
W: 24
L: 120
D: 5.25
W: 12
L: 72, 96
5, 9
15
1.8
48
D15 F10
D: 5.25
W: 6
L: 12
D: 5.25
W: 24
L: 120
D: 5.25
W: 12
L: 72, 96
6, 11
15
1.9
60
D15 F12
D: 5.25
W: 6
L: 12
D: 5.25
W: 24
L: 120
D: 5.25
W: 12
L: 72, 96
7, 13
15
2
72
D15 F17
D: 5.25
W: 6
L: 12
D: 5.25
W: 24
L: 120
D: 5.25
W: 12
L: 72, 96
9, 17
15
2.2
84
D15 Nesting F6
D: 5.25
W: 24
L: 12
D: 5.25
W: 24
L: 96
N/A
24-in-wide pack = 6
15
1.7
24
D15 Nesting F8
D: 5.25
W: 24
L: 12
D: 5.25
W: 24
L: 96
N/A
24-in-wide pack = 8
15
1.8
36
ProductMin. Pack Size D/W/L
mm		Max. Pack Size D/W/L
mm		Stock Pack Size D/W/L
mm		No. 30 Mil Flat Stiffener Sheets 12-in-wide Pack 24-in-wide PackGauge
mils		Weight
kg/m2		Maximum Span
D15 F6
D: 133
W: 152
L: 305
D: 133
W: 610
L: 3048
D: 133
W: 305
L: 1829, 2438
4, 7
0.38
8.3
915
D15 F8
D: 133
W: 152
L: 305
D: 133
W: 610
L: 3048
D: 133
W: 305
L: 1829, 2438
5, 9
0.38
8.8
1220
D15 F10
D: 133
W: 152
L: 305
D: 133
W: 610
L: 3048
D: 133
W: 305
L: 1829, 2438
6, 11
0.38
9.3
1525
D15 F12
D: 133
W: 152
L: 305
D: 133
W: 610
L: 3048
D: 133
W: 305
L: 1829, 2438
7, 13
0.38
9.8
1830
D15 F17
D: 133
W: 152
L: 305
D: 133
W: 610
L: 3048
D: 133
W: 305
L: 1829, 2438
9, 17
0.38
10.7
2135
D15 Nesting F6
D: 133
W: 610
L: 305
D: 133
W: 610
L: 2438
N/A
24-in-wide pack = 6
0.38
8.3
610
D15 Nesting F8
D: 133
W: 610
L: 305
D: 133
W: 610
L: 2438
N/A
24-in-wide pack = 8
0.38
8.8
915

Specifications (TEP/C 130)

English Metric
ProductCell Size
inches		Depth
inches		Width
inches		Length
inches		Dry Weight
lbs/ft2		Maximum Span
inches
TEC 130
0.71
4.92
31.50
11.81-94.49
(11.81 in increments)
0.92
39.37
TEP 130
0.71
4.92
27.56
11.81-94.49
(11.81 in increments)
0.90
39.37
ProductCell Size
mm		Depth
mm		Width
mm		Standard Lengths
mm		Dry Weight
kg/m2		Maximum Span
mm
TEC 130
18
125
800
300-2400
(300 mm increments)
4.5
1000
TEP 130
18
125
700
300-2400
(300 mm increments)
4.4
1000

Articles & Literature

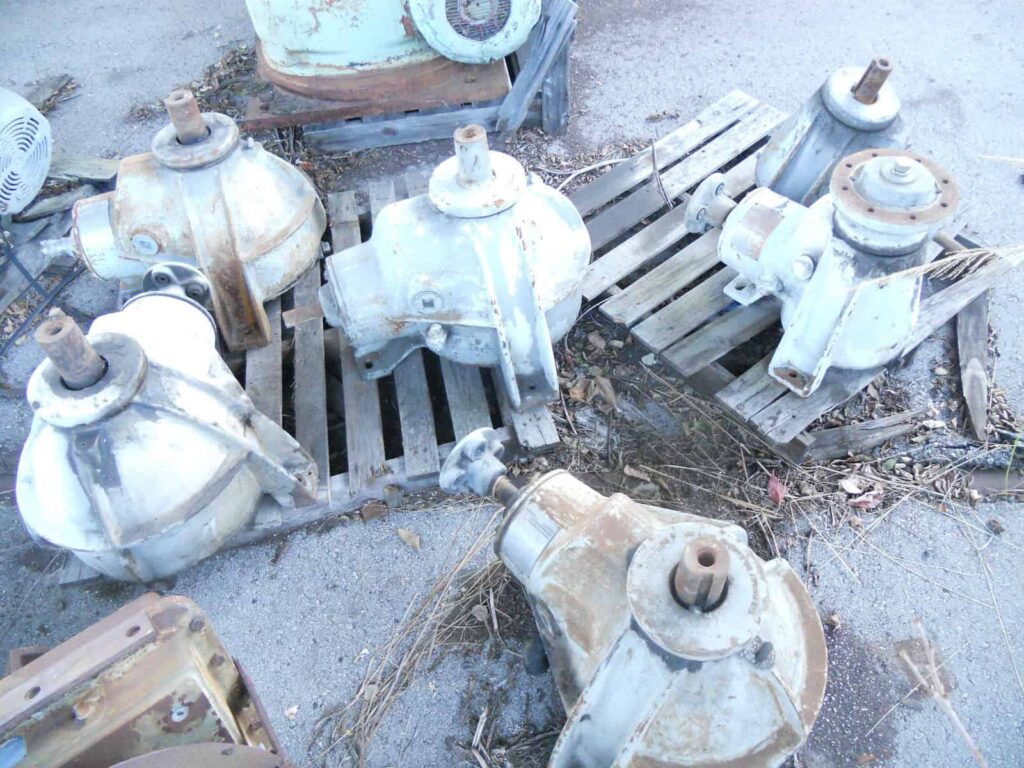

old rusty gears
