Drift Eliminator Supports
AccuPac® Support Components mount onto a tower's existing inclined posts to provide an easy-to install, stable, low-cost drift eliminator support system.
Benefits
Rigid, UV-stabilized PVC meets Cooling Technology Institute Standard 136
Integrate with existing inclined posts in towers
Navigate Within Drift Eliminators
Specifications
English
Metric
| Products | Wall Thickness inches | Height inches | Shelf inches | Standard Lengths Ft | Maximum Span Ft | Weight Lbs/ft |
|---|---|---|---|---|---|---|

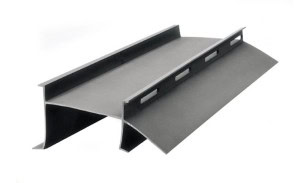

| XF600 | 0.125 | 4.15 | 5.75 | 8, 12 | 4 | 1.4 |

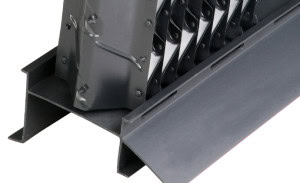

| Top/Bottom | N/A | 6 | 5.875 | 8, 12 | 4 | 1.7 |
| Intermediate | N/A | 4.125 | 5.875 | 8, 12 | 4 | 1.7 |

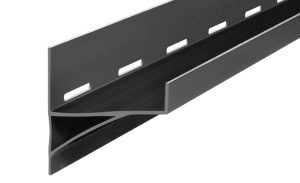

| Column Mount | N/A | 6 | 5.875 | N/A | N/A | 1.42 |

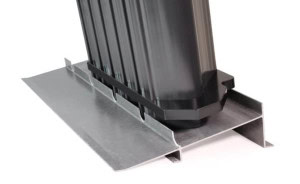

| Spectra Support Tray | 0.125 | 3.75 | 7.25 | 8, 12 | 4 | 2.02 |
| Products | Wall Thickness mm | Height mm | Shelf mm | Standard Lengths mm | Maximum Span mm | Weight Kg/m |
|---|---|---|---|---|---|---|
| XF600 | 3.2 | 105 | 146 | 2438, 3658 | 1219 | 2.1 |
| Top/Bottom | N/A | 152 | 149 | 2438, 3658 | 1219 | 2.5 |
| Intermediate | N/A | 105 | 149 | 2438, 3658 | 1219 | 2.5 |
| Column Mount | N/A | 152 | 149 | N/A | N/A | 2.1 |
| Spectra Support Tray | 3.2 | 95 | 184 | 2438, 3658 | 1219 | 3.01 |
