Cross-Fluted Fills
Cross-fluted designs provide high thermal performance and have alternating fill sheets, allowing for excellent lateral water dispersion. High thermal performance is achieved by utilizing the engineered microstructure design and maintaining the highest manufacturing standards.
Brentwood has spent millions of dollars in R&D and testing of all cooling tower fill and drift eliminator products over the years, collecting results from thousands of high-performing installations. Whether your needs are for counterflow or crossflow tower applications, we can provide educated recommendations for the correct fill replacement to meet existing design criteria or improve upon older tower installations.
Benefits
Available in material meeting Cooling Technology Institute (CTI) Standard 136
Available with AccuShield technology
Select products available with Mechanical Assembly technology
Navigate Within Film Fills
Features
Highly Efficient
Cross-fluted fills offer the highest level of efficiency of all film fill designs, improving heat transfer and maximizing overall tower performance.
Improved Water Distribution
The engineered microstructure incorporated into cross-fluted fills enhances water distribution and thermal mixing.
Dedicated Bond Points
Brentwood’s cross-fluted fills feature bonded edges for added media strength and durability.
Beveled Tips
Beveled tips are incorporated into the cross-fluted design to promote drainage at the fill pack interfaces.
Cross-Fluted Fill Specifications
English
Metric
| Products | Surface Area ft2/ft3 | Sheet Spacing inches | Flute Angle Degrees (˚) | Sheets Per Ft | Pack Sizes Minimum D/W/L inches | Pack Sizes Maximum D/W/L inches | Pack Sizes Standard D/W/L inches | Nominal Gauge mils | Dry Weight lbs/ft3 |
|---|---|---|---|---|---|---|---|---|---|

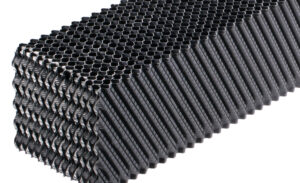

| CF1200 | 69 | 0.46 | 30 | 26 | D: 3.9 W: 6 L: 12 | D: 11.8 W: 12 L: 120 | D: 11.8 W: 12 L: 48, 72, 96, 120 | 8 10 15 | 2.3 2.7 3.8 |

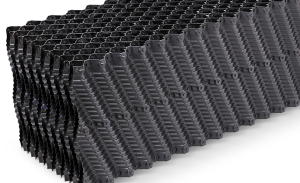

| ThermaCross | 47 | 0.75 | 22 | 16 | D: 5.9 W: 5.9 L: 12 | D: 23.625 W: 23.625 L: 144 | D: 11.8 or 23.625 W: 11.8 L: 72, 96, 120 | 10 15 20 | 1.7 2.4 3.3 |

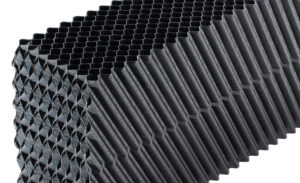

| CF1900 | 48 | 0.75 | 31 | 16 | D: 6 W: 6 L: 12 | D: 24 W: 24 L: 12 | D: 12 or 24 W: 12 or 24 L: 48, 72, 96, 120 | 10 15 20 | 1.7 2.4 3.3 |

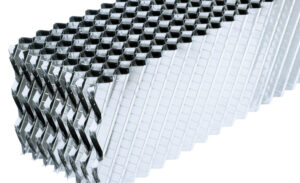

| CF1900SS | 48 | 0.75 | 27 | 16 | D: 12 W: 6 L: 24 | D: 12 W: 12 L: 72 | D: 12 W: 12 L: 48, 72 | 5 | 4.8 |

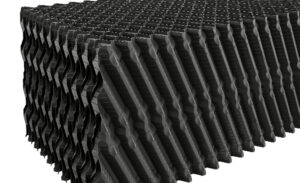

| CFS3000 | 31 | 1.18 | 30 | 10 | D: 12 W: 6 L: 12 | D: 24 W: 24 L: 12 | D: 24 W: 12 or 24 L: 48, 72, 96, 120 | 15 20 | 1.6 2.2 |
| Products | Surface Area m2/m3 | Sheet Spacing mm | Flute Angle Degrees(˚) | Pack Sizes Minimum D/W/L mm | Pack Sizes Maximum D/W/L mm | Pack Sizes Standard D/W/L mm | Nominal Gauge mm | Dry Weight kg/m3 |
|---|---|---|---|---|---|---|---|---|
| CF1200 | 226 | 11.7 | 30 | D: 100 W: 153 L: 305 | D: 300 W: 305 L: 3048 | D: 300 W: 305 L: 1220, 1829, 2439, 3048 | 0.20 0.25 0.38 | 36.8 43.2 60.9 |
| ThermaCross | 154 | 19 | 22 | D: 150 W: 150 L: 305 | D: 600 W: 600 L: 3658 | D: 300 or 600 W: 300 L: 1829, 2439, 3048 | 0.25 0.38 0.51 | 27.2 38.4 52.9 |
| CF1900 | 157.5 | 19 | 31 | D: 153 W: 153 L: 305 | D: 610 W: 610 L: 3658 | D: 305 or 610 W: 305 or 610 L: 1220, 1829, 2439, 3048 | 0.25 0.38 0.51 | 27.2 38.4 52.9 |
| CF1900SS | 157.5 | 19 | 27 | D: 305 W: 153 L: 610 | D: 305 W: 305 L: 1829 | D: 305 W: 305 L: 1220, 1829 | 0.13 | 76.9 |
| CFS3000 | 102 | 30.5 | 30 | D: 305 W: 153 L: 305 | D: 610 W: 610 L: 3658 | D: 610 W: 305 or 610 L: 1220, 1829, 2439, 3048 | 0.38 0.51 | 25.6 35.2 |
