Vertical-Fluted Fills
Vertical-fluted fills are designed to direct the water in a vertical path, and large flute openings produce the high water velocities necessary to create an anti-fouling environment.
Benefits
Available in material meeting Cooling Technology Institute (CTI) Standard 136
Available with AccuShield technology
Select products available with Mechanical Assembly technology
Navigate Within Film Fills
Features
Fouling Resistant
Brentwood’s low-fouling fills have been designed to provide a solution for applications with poor water quality, preventing the media from plugging and improving overall tower efficiency.
Dedicated Bond Points
Bonded edges create rigid, self-supporting media modules, ensuring accurate assembly and maximum strength.
Vertical-Fluted Fill Specifications
English
Metric
| Products | Surface Area ft2/ft3 | Sheet Spacing inches | Flute Angle Degrees (°) | Sheets Per Foot | Media Min. Size D/W/L inches | Media Max. Size D/W/L inches | Media Standard Size D/W/L inches | Nominal Gauge mils | Dry Weight lbs/ft3 |
|---|---|---|---|---|---|---|---|---|---|

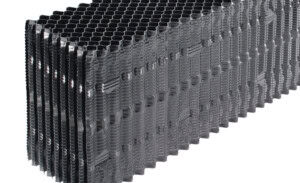

| VF19 PLUS | 47 | 0.75 | 0 | 16 | D: 11.8 W: 6 L: 12 | D: 35.4 W: 24 L: 144 | D: 23.6 W: 12, 24 L: 48, 72, 96, 120 | 10, 15 | 1.7, 2.4 |

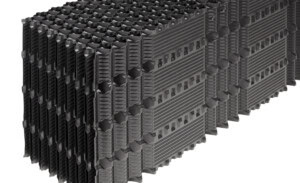

| AFVF19 | 42 | 0.76 | 0 | 16 | D: 9.8 W: 3.1 L: 20.1 | D: 39.4 W: 23.3 L: 120.4 | D: 19.7 W: 12.4 L: 80.3, 120.4 | 10, 15 | 1.7, 2.4 |

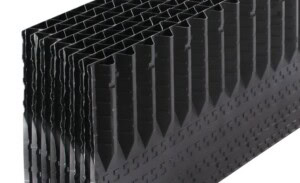

| VF3800 | 40 | 1.5 | 0 | 16 | D: 24 W: 6 L: 12 | D: 24 W: 24 L: 144 | D: 24 W: 12, 24 L: 48, 72, 96, 120 | 15/22 | 2.7 |

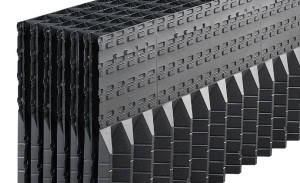

| VF5000 | 30 | 2 | 0 | 12 | D: 24 W: 6 L: 12 | D: 24 W: 24 L: 144 | D: 24 W: 12, 24 L: 48, 72, 96, 120 | Mixed: 15, 22 | 2.1 |

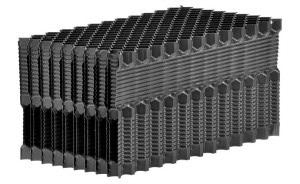

| KVP 319 | 44 | 0.75 | 0 | 16 | D: 11.8 W: 6 L: 11.8 | D: 23.6 W: 23.9 L: 94.5 | D: 23.6 W: 12 L: 59.1, 70.9, 82.7 | N/A | 5.7 |
| Products | Surface Area m2/m3 | Sheet Spacing mm | Flute Angle Degrees (°) | Media Min. Size D/W/L mm | Media Max. Size D/W/L mm | Media Standard Size D/W/L mm | Nominal Gauge mm | Dry Weight kg/m3 |
|---|---|---|---|---|---|---|---|---|
| VF19 PLUS | 154 | 19 | 0 | D: 300 W: 153 L: 305 | D: 900 W: 610 L: 3658 | D: 600 W: 305, 610 L: 1220, 1829, 2439, 3048 | 0.25, 0.38 | 27.2, 38.4 |
| AFVF19 | 138 | 19.4 | 0 | D: 250 W: 79 L: 510 | D: 1000 W: 592 L: 3058 | D: 500 W: 315 L: 2038, 3058 | 0.25, 0.38 | 27.2, 38.4 |
| VF3800 | 131 | 38 | 0 | D: 610 W: 153 L: 305 | D: 610 W: 610 L: 3658 | D: 610 W: 305, 610 L: 1220, 1829, 2439, 3048 | 0.38/0.56 | 43.3 |
| VF5000 | 98 | 50 | 0 | D: 610 W: 153 L: 305 | D: 610 W: 610 L: 3658 | D: 610 W: 305, 610 L: 1220, 1829, 2439, 3048 | Mixed: 0.38, 0.56 | 33.6 |
| KVP 319 | 144 | 19 | 0 | D: 300 W: 152 L: 300 | D: 600 W: 608 L: 2400 | D: 600 W: 304 L: 1500, 1800, 2100 | N/A | 28 |
