SpiraBar®

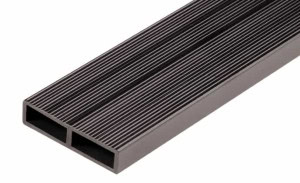

SpiraBar enables thermal performance equal to, or better than, any splash bar on the market by providing the most uniform droplet distribution of any splash bar design. More uniform distribution of water and air allows the bars to be installed without a staggered configuration, which older bars required due to water shedding.
When paired with Brentwood's SpeedGrid system, SpiraBar installs 50% faster than standard splash bars. This improves jobsite safety by reducing labor time, keeping the contractor's team firmly on the ground more than in the air.
Benefits
Anti-fouling design for use in highly compromised water
Provides the most uniform droplet distribution of any splash bar design
Navigate Within Splash Bar Fills
Splash Bar Fill Specifications
English
Metric
| Products | Height inches | Width inches | Length inches | Weight Lbs/ft | Material Thickness mils | Recommended Support Span Ft |
|---|---|---|---|---|---|---|
| SpiraBar 4" Rectangle | 1.8 | 3.9 | 4ft - 14ft 6" increments | 0.14 | N/A | 2 |
| SpiraBar 4" Long Span | 2.5 | 3.9 | 4ft - 14ft 6" | 0.15 | N/A | 3.5 |
| Kelly Bar | 0.86 | 4.25 | Extruded to any length | 0.13 | 50 | 3 |
| Kelly Bar HD | 1.33 | 4.25 | Extruded to any length | 0.24 | 80 | 4 |
| V Bar | 1.68 | 3.75 | Extruded to any length | 0.12 | 50 | 2 |
| V Bar HD | 1.68 | 3.75 | Extruded to any length | 0.19 | 80 | 3 |
| Pi Bar | 1.53 | 1.75 | Extruded to any length | 0.22 | 60 | 5 |
| Para Bar | 1.78 | 4.16 | Extruded to any length | 0.152 | 50 | 3 |
| Para Bar LS | 2.29 | 4.16 | Extruded to any length | 0.182 | 50 | 5 |
| PVC Lath | 0.43 | 1.5 | Extruded to any length | 0.13 | 50 | 2 |
| Products | Height mm | Width mm | Length mm | Weight Kg/m | Material Thickness mm | Recommended Support Span mm |
|---|---|---|---|---|---|---|
| SpiraBar 4" Rectangle | 46 | 99 | 1219 - 4267 | 0.21 | N/A | 610 |
| SpiraBar 4" Long Span | 64 | 99 | 1219 - 4420 | 0.22 | N/A | 1067 |
| Kelly Bar | 22 | 108 | Extruded to any length | 0.19 | 1.3 | 915 |
| Kelly Bar HD | 34 | 108 | Extruded to any length | 0.36 | 2.0 | 1219 |
| V Bar | 43 | 95 | Extruded to any length | 0.18 | 1.3 | 610 |
| V Bar HD | 43 | 95 | Extruded to any length | 0.28 | 2.0 | 914 |
| Pi Bar | 39 | 44 | Extruded to any length | 0.33 | 1.52 | 1524 |
| Para Bar | 45 | 106 | Extruded to any length | 0.23 | 1.3 | 914 |
| Para Bar LS | 58 | 106 | Extruded to any length | 0.27 | 1.3 | 1524 |
| PVC Lath | 11 | 38 | Extruded to any length | 0.19 | 1.3 | 610 |
