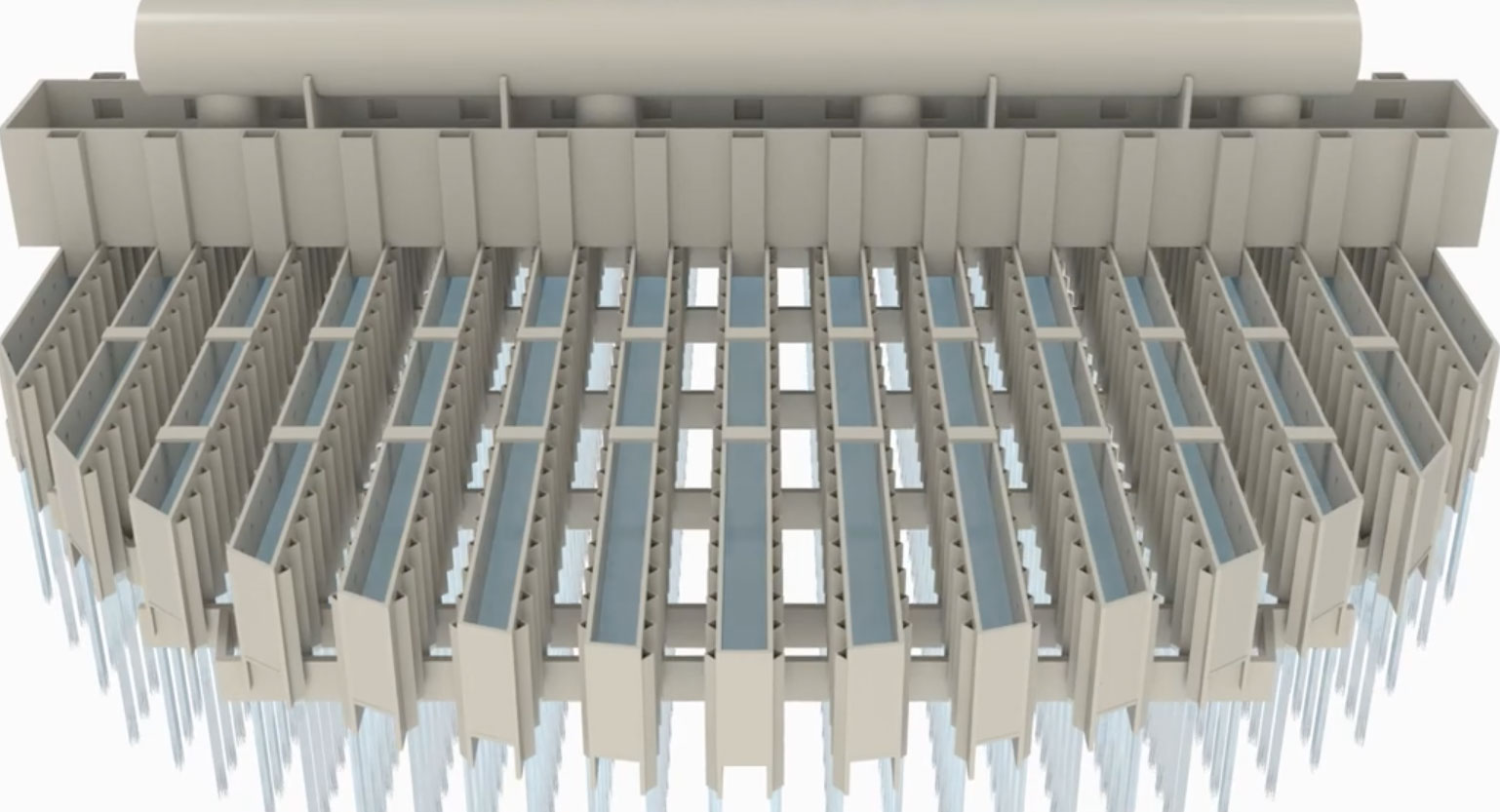

Liquid Distributors
The importance of good liquid distribution is vital when using structured packing. The main role of a liquid distributor is to evenly distribute liquid throughout the packing bed's cross-section, ensuring a consistent concentration and temperature profile at all heights. The liquid distributor's design impacts separation performance.
Brentwood can help in differentiating the features of our liquid distributors, including gravity vs. pressure-driven liquid flow, distribution methods and single or multi-stage flow patterns. The quality of distribution is essential, influenced by drip point density, pattern, uniform flow rates, distance to the bed's top, orientation, and design aspects. The choice of distributor depends on the difficulty of the separation, column height constraints, liquid irrigation density, turndown required and cleanliness of the process liquid.
We will help you to find the right liquid distributor and tailor it in accordance with your specific application.
Benefits
Wide product range
Constant quality control
Highly motivated team
Many years of experience
Continuous development
Navigate Within Mass Transfer
Liquid Distributor Specifications
| Product | Type | Diameter Range | Irrigation Density Range | Standard Turn Down | Range Of The Maximum Gas Capacity | Susceptibility To Fouling |
|---|---|---|---|---|---|---|
| LDP 200 | Closed Pipe | > 800 mm | 8 to 30 (60) m³/m²h 3 to 12 (24) gpm/ft² | 1.7 : 1 | 3.90 Pa0,5 | average |
| LDP 220 | Closed Pipe | > 800 mm | 8 to 30 (60) m³/m²h 3 to 12 (24) gpm/ft² | 1.7 : 1 | 3.90 Pa0,5 | average |
| NDP 310 | Spray Nozzle | > 2,100 mm | 3 to 180 m³/m²h 1.2 to 74 gpm/ft² | 1.5 : 1 | 3.25 Pa0,5 | low |
| PDP 350 | Pan Distributor | > 500 mm | 12.5 to 80 m³/m²h 5 to 33 gpm/ft² | 2.15 : 1 | 3.25 Pa0,5 | low to average |
| TDP 400 | Trough Distributor | > 1,000 mm | 12.5 to 50 (100) m³/m²h 5 to 20 (40) gpm/ft² | 2.1 : 1 | 2.75 Pa0,5 | average to high |
| TDP 410 | Trough Distributor | > 1,000 mm | 15 to 40 (80) m³/m²h 6 to 16 (32) gpm/ft² | 2.5 : 1 (for triangular slots: 4 : 1) | 2.25 Pa0,5 | low |
| TDP 420 | Trough Distributor | > 1,000 mm | 12.5 to 50 (100) m³/m²h 5 to 20 (40) gpm/ft² | 2.1 : 1 (with multiple rows of holes: 10 : 1) | 3.90 Pa0,5 | low to average |
| TDP 430 | Trough Distributor | > 800 mm | 3 to 30 (60) m³/m²h 1 to 12 (24) gpm/ft² | 2.1 : 1 | 3.90 Pa0,5 | average |
Specifications table not found.
