Turbine Inlets

Brentwood’s AccuPac Droplet Eliminators are specially designed to scrub water from the air stream in turbine inlet applications. In some applications, humidification systems are added to the incoming air, requiring droplet eliminators down-stream to ensure that no droplets enter the turbine and cause damage.

Cooling Tower Turbine Inlet Cellular Drift Eliminators

Features

Proven technology in turbine inlet applications

High droplet elimination efficiency

Low pressure drop design

Drop-in replacement for existing systems

Turbine Inlet Products

D15NEST

CF150MAx

CF80MAx

an image showcasing the XF80MAx crossflow cellular drift eliminator

XF80MAx (DBX)

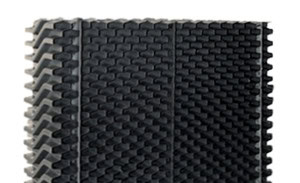

D15Perf

Specifications (CF)

English Metric

Products	Cell Size inches	Depth inches	Width inches	Standard Lengths Ft	Nominal Thicknes (after Forming) S: Standard - Hd: Heavy Duty mils	Dry Weight lbs/ft2	Maximum Span Ft
CF80MAx	0.86	5.25	12, 18	2, 3, 4, 5, 6, 8, 10, 12	S: 13 HD: 20	S: 1.6 HD: 2.2	S: 4 HD: 6
CF150MAx	1.50	5.25	12, 18	2, 3, 4, 5, 6, 8, 10, 12	S: 15 HD: 20	S: 1.0 HD: 1.4	S: 4 HD: 5

Products	Cell Size mm	Depth mm	Width mm	Standard Lengths mm	Nominal Thicknes (after Forming) S: Standard - Hd: Heavy Duty mm	Dry Weight kg/m2	Maximum Span m
CF80MAx	21.8	133	305, 457	610, 914, 1219, 1524, 1829, 2438, 3048, 3658	S: 0.33 HD: 0.51	S: 7.8 HD: 10.7	S: 1.2 HD:1.8
CF150MAx	38.1	133	305, 457	610, 914, 1219, 1524, 1829, 2438, 3048, 3658	S: 0.33 HD: 0.51	S: 4.9 HD: 6.8	S: 1.2 HD: 1.5

Specifications (D15NEST)

English Metric

Products	Number Of 30 Mil Stiffener Sheets in A 24-in-wide Pack	Media Min. Size D/W/L inches	Media Max. Size D/W/L inches	Gauge mils	Weight Lb/ft2	Maximum Span inches
D15NEST F6	6	D: 5.25 W: 24 L: 12	D: 5.25 W: 24 L: 96	15	1.7	72
D15NEST F8	8	D: 5.25 W: 24 L: 12	D: 5.25 W: 24 L: 96	15	1.8	96

Products	Number Of 30 Mil Stiffener Sheets in A 24-in-wide Pack	Media Min. Size D/W/L mm	Media Max. Size D/W/L mm	Gauge mm	Weight kg/m2	Maximum Span mm
D15NEST F6	6	D: 133 W: 610 L: 305	D: 133 W: 610 L: 2438	0.38	8.3	1830
D15NEST F8	8	D: 133 W: 610 L: 305	D: 133 W: 610 L: 2438	0.38	8.8	2440

Specifications (XF80 (DBX))

English Metric

Product	Blade Spacing inches	Depth inches	Width inches	Length ft	Blade Thickness (After Forming) mils	Dry Weight lbs/ft2	Maximum Spam ft
XF80MAx (DBX)	0.86	5.25	24	2, 3, 4, 5, 6, 8, 10, 12	13	1.1	8

Product	Blade Spacing mm	Depth mm	Width mm	Length mm	Blade Thickness (After Forming) mils	Dry Weight kg/m2	Maximum Spam m
XF80MAx (DBX)	21.8	133	610	610, 914, 1219, 1524, 1829, 2438, 3048, 3658	0.38	5.4	2.4

Specifications (D15Perf)

English Metric

Product	Number of Stiffener Sheets in 25.05-in-wide pack	Media Min. Size D/W/L inches	Media Max. Size D/W/L inches	Gauge mils	Weight lb/ft2	Maximum Spam
D15PERF	0.125" - 2 0.030" -1	D: 5.25 W: 12.125 L: 12	D: 5.25 W: 25.05 L: 90	15	1.7	72

Product	Number of Stiffener Sheets in 25.05-in-wide pack	Media Min. Size D/W/L mm	Media Max. Size D/W/L mm	Gauge mm	Weight kg/m2	Maximum Spam mm
D15PERF	0.125" - 2 0.030" -1	D: 133 W: 308 L: 305	D: 133 W: 610 L: 2286	0.38	8.3	1830

Articles & Literature

D15PERF For Turbine Inlet Applications

Some Brentwood products are specifically designed for a single application. One such product is the D15PERF. The D15PERF was designed intentionally for the turbine inlet market and incorporates a number […]

Read Article

Literature

Turbine Inlet Cut Sheet
