Drive Unit Assembly

Brentwood supplies drive units that are custom configured for each collector based on system requirements and regional and environmental conditions. Each system utilizes a motor and gear reducer and optional components such as overtorque protection to prevent drive system failure, a drive chain tightener to maintain tension, and a chain guard to protect rotating equipment above the deck.

A blue motorized mechanical device, known as a drive unit assembly, is mounted on a concrete surface with bolts. It connects to a chain and sprocket system adjacent to a metal frame.

Features

Custom-designed for your application

Complements Polychem drive chain

Easy-to-reset torque limiter available

Navigate Within Polychem® Systems

Drive Unit Assembly Products

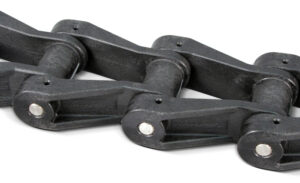

Close-up of a Polychem® NH-78 Drive Chain with thick, interconnected links and visible metal pins at the joints, designed for heavy-duty machinery or conveyor systems.

Polychem^® NH-78 Drive Chain

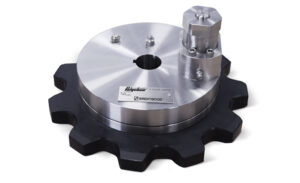

Polychem^® Torque Limiter

Specifications (Drive Chain)

English Metric

Series	Pitch inches	Average Weight Per Ft lbs	Working Load Lbs-f	Pin Diameter inches	Link Material	Pin Material
NH-78	2.609	1.25	1740	0.375	GLASS REINFORCED NYLON	303 SS

Series	Pitch mm	Average Weight Per Ft kg	Working Load Kn	Pin Diameter mm	Link Material	Pin Material
NH-78	66.27	0.57	7.74	9.5	GLASS REINFORCED NYLON	303 SS

Specifications (Overtorque Protection)

Product	Part Number	Type	Externally Adjustable Torque Range Lbs/in	Min. Rockwell Hardness	Min. Nh-78 Sprocket
Torque Limiter	JSE1-0150		2,024-9,287	62 R/C	11 Teeth

Specifications table not found.

A close-up view of industrial machinery with cogwheels, head shafts, and a chain, all shown in a blue-tinted color scheme.

System Animation

Learn how all the components in a standard Polychem system are assembled and installed.
