Polychem® Sprockets

Brentwood’s Polychem sprockets are molded from a specially selected, high-strength Nylon material that outwears and outlasts UHMW-PE and polyurethane sprocket alternatives. All sprockets are equipped with standard integral teeth to maintain tooth alignment and are designed for use with Polychem collector chain.

an image showing a close up of a sprocket for PolyChem Systems
Features
Split design allows use of both sides of sprocket teeth
Not susceptible to rust
High-strength Cast Nylon 6 material
Navigate Within Polychem® Systems

Sprockets Products

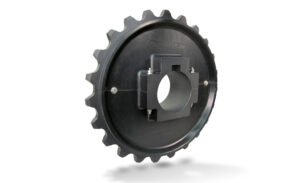

A black, circular sprocket with evenly spaced teeth along its edge. The center of the sprocket features a square-shaped mounting hole and additional structural elements for attachment to a head shaft.
Collector Head Shaft Sprocket

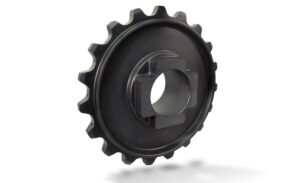

A metal sprocket with evenly spaced teeth along its outer edge, a circular hole in the center, and additional squared and rectangular cutouts surrounding the hole.
Idler Collector Sprocket

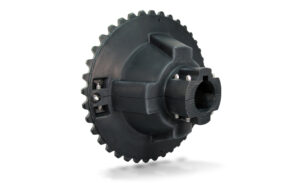

A close-up view of a black mechanical gear component with a circular, cogged edge
Driven Sprocket

Specifications

Sprocket TypeNumber Of TeethPitch Diameter
inches		Average Weight
lbs		Max. Keyed Bore
inches		Min. Rockwell HardnessMin. Tensile Strength PsiStandard HardwareStandard Ltb
inches
NCS-720-S Collector Sprocket
25T
24.10
35
5.75
R115
10,000
316SS
5.25
NCS-720-S Collector Sprocket
23T
22.21
28
5.75
R115
10,000
316SS
5.25
NCS-720-S Collector Sprocket
19T
18.45
19
5.75
R115
10,000
316SS
5.25
NCS-720-S Collector Sprocket
17T
16.59
14
5.75
R115
10,000
316SS
5.25
NCS-720-S Collector Sprocket
13T
12.89
15
5.75
R115
10,000
316SS
5.25
NH-78 Bull Gear Sprocket
40T
33.25
85
5.75
R115
10,000
316SS
5.25
NH-78 Shear Pin Hub Sprocket
11T
9.26
21
2.5
R115
10,000
316SS
2.5
Specifications table not found.
A close-up view of industrial machinery with cogwheels, head shafts, and a chain, all shown in a blue-tinted color scheme.
System Animation

Learn how all the components in a standard Polychem system are assembled and installed.

Watch Video

Articles & Literature

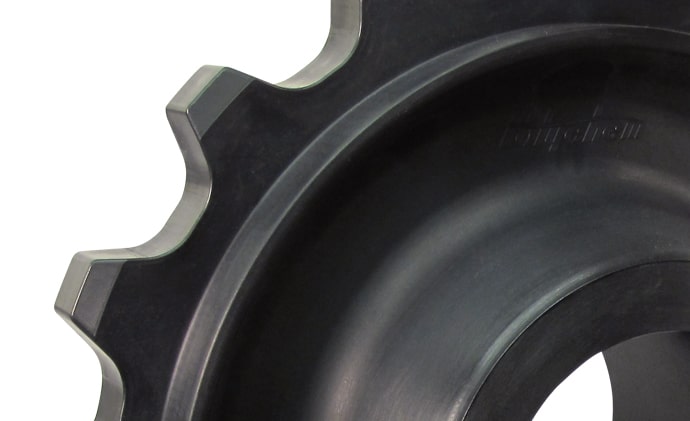

a close up showing the teeth of a sprocket
Not All Sprockets Are the Same
In rectangular clarifiers, straight-line sludge collector mechanisms have in-tank sprocket gears that are mounted on shafting to transmit torque from the drive unit and help keep the chain and flight system […]
Read Article
Literature
Polychem Chain & Flight Brochure Polychem Field Services
