Polychem® Stub Shafts

Brentwood’s Polychem sprockets are molded from a specially selected, high-strength Nylon material that outwears and outlasts UHMW-PE and polyurethane sprocket alternatives. All sprockets are equipped with standard integral teeth to maintain tooth alignment and are designed for use with Polychem collector chain.

Two dark steel chamfer-style weights with cylindrical tops and wider, tapering bases resemble stub shafts. The weights are uniform in color with a smooth, matte surface finish.
Features
Split design allows use of both sides of sprocket teeth
Not susceptible to rust
High-strength Cast Nylon 6 material
Navigate Within Polychem® Systems

Adjustable Stub Shaft Products

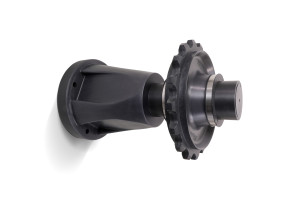

TrueSpan™ Stub Shaft

Specifications

English Metric
Stub Shaft #Max. Sprocket Centerline Distance From Wall
inches		Standard Journal Length
inches		Base Diameter
inches		Max. Overall Length
inches		Min. Overall Length
inches		Base & Journal MaterialBearing MaterialRetainer Plate Material
5
29
5.38
15
30.5
10.69
Cast Nylon 6
UHMW-PE
Polycarbonate
6
20
5.38
11.56
24
10.69
Cast Nylon 6
UHMW-PE
Polycarbonate
Stub Shaft #Max. Sprocket Centerline Distance From Wall
mm		Standard Journal Length
mm		Base Diameter
mm		Max. Overall Length
mm		Min. Overall Length
mm		Base & Journal MaterialBearing MaterialRetainer Plate Material
5
736.6
136.65
381
774.7
271.53
Cast Nylon 6
UHMW-PE
Polycarbonate
6
508
136.65
293.62
609.6
271.53
Cast Nylon 6
UHMW-PE
Polycarbonate

Specifications

English Metric
Stub Shaft #Max. Sprocket Centerline Distance From Wall
inches		Standard Journal Length
inches		Base Diameter
inches		Max. Overall Length
inches		Min. Overall Length
inches		Base & Journal MaterialBearing MaterialRetainer Plate Material
5
29
5.38
15
30.5
10.69
Cast Nylon 6
UHMW-PE
Polycarbonate
6
20
5.38
11.56
24
10.69
Cast Nylon 6
UHMW-PE
Polycarbonate
Stub Shaft #Max. Sprocket Centerline Distance From Wall
mm		Standard Journal Length
mm		Base Diameter
mm		Max. Overall Length
mm		Min. Overall Length
mm		Base & Journal MaterialBearing MaterialRetainer Plate Material
5
736.6
136.65
381
774.7
271.53
Cast Nylon 6
UHMW-PE
Polycarbonate
6
508
136.65
293.62
609.6
271.53
Cast Nylon 6
UHMW-PE
Polycarbonate
A close-up view of industrial machinery with cogwheels, head shafts, and a chain, all shown in a blue-tinted color scheme.
System Animation

Learn how all the components in a standard Polychem system are assembled and installed.

Watch Video

Complementary Components

Retainer Plate
Bearings
Hardware
Retainer Plate

Sprockets can be secured to the stub shaft with a single bolt using the polycarbonate retainer plate.

Bearings

The water-lubricated UHMW-PE tubular bearings spin on the spindle and are keyed to the outer end tubes to support the shaft. Oil-filled Nylon 6 bearings are available for specific cases where high temperatures and chemicals corrode UHMW-PE.

Hardware

The hardware kit utilizes 316 SS leveling bolts to allow for proper alignment and adjustability in the field.
