SmartGuard^® Collector Monitoring System

The SmartGuard Collector Monitoring System for rectangular clarifiers identifies collector system overloads that cannot be detected by traditional shear pin or torque monitoring devices. SmartGuard’s strategic placement allows it to monitor regular motion, warn of potential danger, and shut down the system before damage can occur. This cost-effective, early detection approach helps water and wastewater plants to avoid costly system failures by controlling up to four mechanisms, including longitudinal collectors, cross collectors, and screw conveyors.

A shield emblem with the letters "SG" is at the center of the image. "SMARTGUARD" stands out in large, bold letters, while "COLLECTOR MONITORING SYSTEM" appears in smaller text beneath it. The background features a wavy, abstract pattern in dark and light shades.

Features

Identifies flight misalignment & monitors sprocket motion

Offers reliable system intelligence

Prevents damage to chains, flights, & attachment links

Navigate Within Polychem® Systems

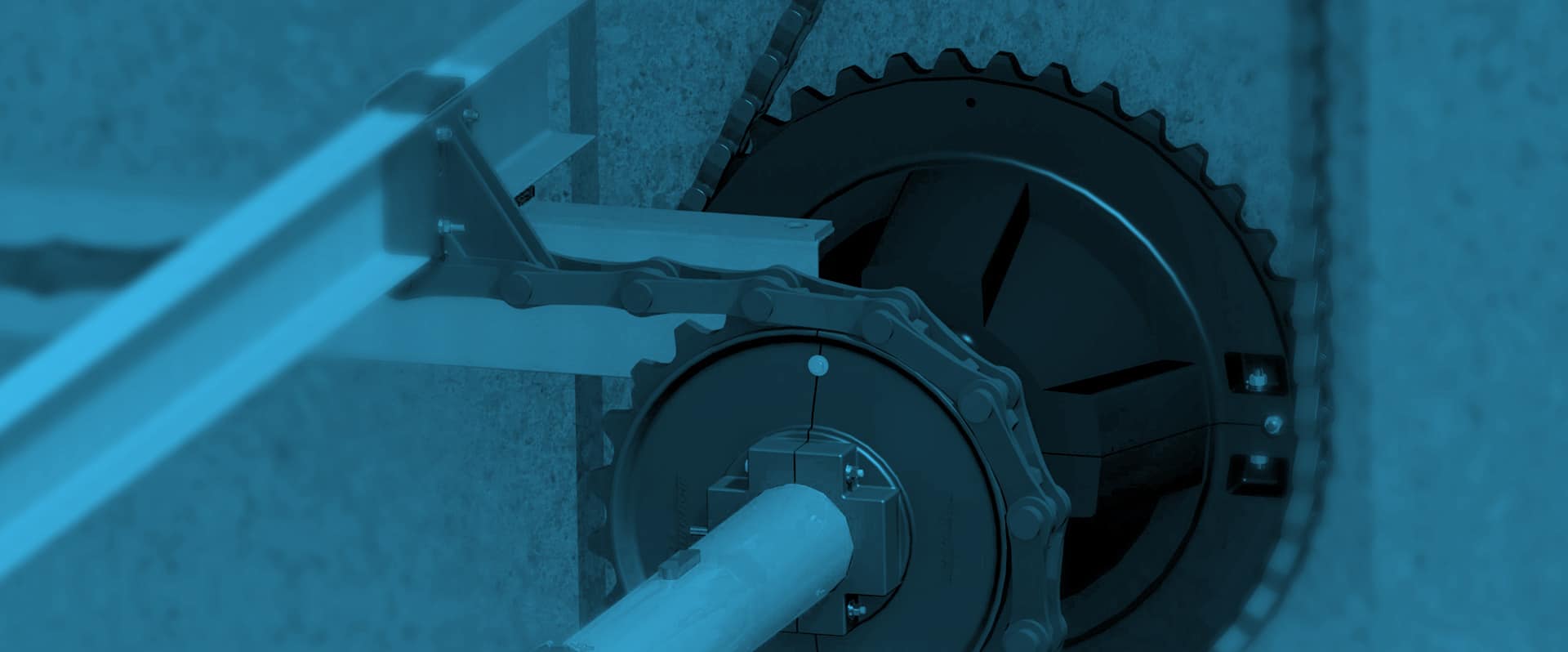

A close-up view of industrial machinery with cogwheels, head shafts, and a chain, all shown in a blue-tinted color scheme.

System Animation

Learn how all the components in a standard Polychem system are assembled and installed.

Components

Sprocket Motion Monitoring

ChainCheck™ Flight Monitoring

Control Panel

Sprocket Motion Monitoring

Sensors placed at the lower-rear idlers monitor sprocket motion and automatically shut down the system if motion loss occurs.

ChainCheck™ Flight Monitoring

ChainCheck™ employs magnetic sensors to monitor flight alignment.

Control Panel

Monitor up to four mechanisms with the optional control panel that works as a total control solution.

an image showing the close up of the sprocket motion monitoring offered by smartguard

A close-up view of a Polychem drive chain assembly with SmartGuard technology in a wastewater treatment facility. The black chain with blue and red connectors is mounted on a gray metal frame. A white PVC pipe with a blue joint is visible, connected to the system.

An industrial control panel with a stainless steel surface is shown. It features a digital display and a keypad with multiple buttons, including directional arrows and numeric keys.

Articles & Literature

SmartGuard Flight and Sprocket Monitoring

The Evolution of Collector Monitoring Systems

The vast majority of chain and flight collectors in operation throughout the world do not have any form of monitoring system installed to protect against operational failure. Traditional safety devices […]

Literature

Polychem Chain & Flight Brochure SmartGuard Cut Sheet Polychem Field Services

Water & Wastewater Treatment Products

an image showing three head shafts

Head Shafts

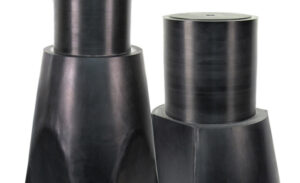

Two dark steel chamfer-style weights with cylindrical tops and wider, tapering bases resemble stub shafts. The weights are uniform in color with a smooth, matte surface finish.

Stub Shafts

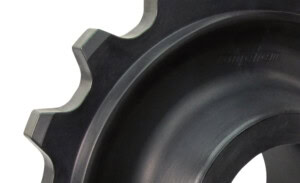

an image showing a close up of a sprocket for PolyChem Systems

Sprockets

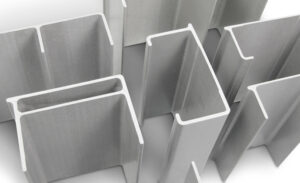

Close-up view of multiple metal channel sections, displayed in varying angles. The channels, likely made of steel or aluminum, exhibit smooth, reflective surfaces and sharp, clean edges

Flights

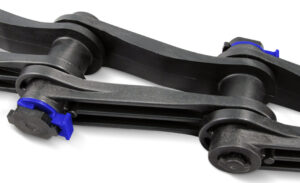

an image of a close up featuring an overview of a collector chain

Collector Chain

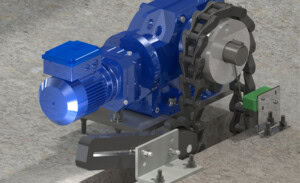

A blue motorized mechanical device, known as a drive unit assembly, is mounted on a concrete surface with bolts. It connects to a chain and sprocket system adjacent to a metal frame.

Drive Unit Assembly

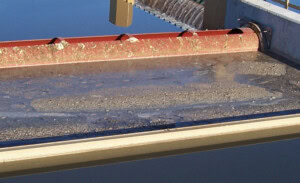

A close-up of water flowing over a weir at a wastewater treatment plant. The image shows sediment and debris, part of the scum removal process, on the water surface as it moves over a red and brown barrier before falling into a lower section. The structure is surrounded by concrete.
