SK Sedimentation Tank

The SK Sedimentation Tank series offers a range of compact, ready-to-connect units for separating solids from liquids. The sedimentation process in these units is based on the proven counterflow principle. They are available in different sizes with settling areas of 2-72 m² (21.5-775 ft²) and flow rates of 2-70 m3/h (8.8-308 gpm) for usual sedimentation tasks.

The modular design allows cost savings and a high level of flexibility when the system needs to be modified or expanded.

Close-up of a cylindrical industrial component resembling a sedimentation tank with a grid-like structure inside. Two horizontal pipes with multiple holes run through the center of the cylinder, and there are several connectors and brackets attached to the edges.
Benefits
Optimized flow dynamics
Increase settling area without increasing footprint
Adaptable to specific project requirements
Quick and easy to install and relocate
Better removal efficiency than conventional parallel plates
Navigate Within Tube Settlers & Lamella

Configurations

SK units are available in 13 different standard types and are adaptable to specific project requirements. Tank size, projected sedimentation area, lamella, and the flange size of inlet, outlet, and sludge drain connections can all be selected accordingly. Units can be designed in either circular or square configurations.

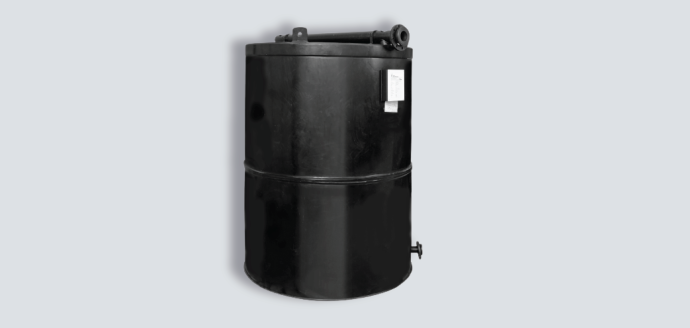

an image showing the SKR round tank units
SKR Round Tank Units

The SKR tank’s innovative circular design not only offer cost savings, but also calms the influent stream, achieves a uniform flow distribution in the lamellas, and facilitates sludge concentrations in the hopper.

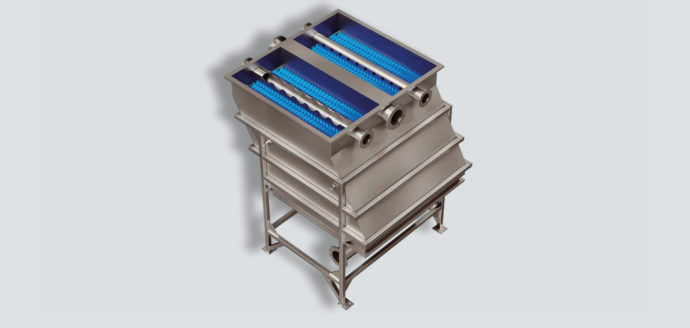

an image showing the SK Sedimentation square tank unit
SKS Square Tank Units

We also supply special solutions consisting of square-design tank units. Special transport requirements or on-site space requirements can be met with this configuration. This tank type also achieves an optimal water distribution by carefully chosen design details.

SKR Specifications

English Metric
MaterialDiameter FtTubedek ProfilesLamella Height
in		Sedimentation Surface Ft²Flow Rate Gpm
PP or PE
up to 11
FS41.50/FS42.62/FS41.84
31.5-39.4
161.5-775
8.8-308
MaterialDiameter
mm		Tubedek ProfilesLamella Height
mm		Sedimentation Surface M²Flow Rate M³/h
PP or PE
up to 3.4
FS41.50/FS42.62/FS41.84
800-1000
15-72
2-70

SKS Specifications

English Metric
MaterialHeight FtLength FtWidth FtLamella Height
in		Footprint Tubedek Fs41.50 Ft²Footprint Tubedek Fs41.84 Ft²
PP, PE, or stainless steel
9
8.5
6.8
39.4
355.21
193.75
MaterialHeight
m		Length
m		Width
m		Lamella Height
mm		Footprint Tubedek Fs41.50 M²Footprint Tubedek Fs41.84 M²
PP, PE, or stainless steel
2.75
2.6
2.07
1000
33
18
